What is REST?

REST is an Architectural style and having a set of rules. Six guiding constraints define a RESTful system.

These constraints restrict the ways that the server can process and respond to client requests so that, by operating within these constraints, the system gains desirable non-functional properties, such as performance, scalability, simplicity, modifiability, visibility, portability, and reliability.

If a system violates any of the required constraints, it cannot be considered RESTful.

Requests​

The client has to make a request to the server to get or modify data on the server. A request contains the following:

  • HTTP verb
  • headers
  • path: to a resource
  • [optional] message body: data

HTTP Methods/Verbs​

HTTP methods, or verbs, define what kind of operation to perform on a resource. Some of the primary ones used with RESTful APIs are:

  • GET: get a resource or collection of resources
  • POST: create a new resource
  • PUT: update a resource
  • PATCH: partially modify a resource
  • DELETE: delete a resource

HTTP Headers​

The client uses headers to pass along request information to the server. Requests can have an Accept request HTTP header which specifies what content type the client can accept from the server. The values are of the media, or MIME type. The simplest MIME types are of the format type/subtype. For example, this could be text/html which is for a text file containing HTML. Or application/json for a JSON file. To see a list of common Accept values check out the MDN web docs.

Path​

Requests need to contain a path to the resource it is trying to perform the HTTP request on. In the above example, that is /todos. This is the resource that you are looking to read from or write to.

One important thing to note is the difference between addressing a collection and an individual item in that collection. The path /todos would be addressing all of the items on the todo list. A POST to this path could create a new item on that list, and a request to GET /todos would return all items. On the other hand, GET /todos/2 would return just the second item on the todo list.

Response​

After the client sends a request to the server, the server sends a response back to the client. This response consists of a: status code headers message body: data

[
    {
        "name": "pay rent",
        "due": 1589031653,
        "completed": false
    },
    {
        "name": "get groceries",
        "due": 1588869295,
        "completed": true
    }
]

Response Status Code​

One of the return values in a response is a response status code. Each code has a specific designation; for example, 200 is OK and means the request was successful. The response code categories are as follows:

  • 1XX: Informational
  • 2XX: Successful
  • 3XX: Redirects
  • 4XX: Client Errors
  • 5XX: Server Errors

REST constraints​

Client-Server Separation​

The principle behind the client-server constraints is the separation of concerns.

First, there needs to be a separation of client and server. This means that the client and server each need to work independent of each other. Their only form of interaction is when a client makes requests and a server sends a response whenever it receives a request. One of the benefits is that the client and server can each be updated or modified independently without affecting the other.

For example, if you make a call to a restaurant to place a takeout order, the only interaction is you asking for a specific item and them responding with an ok or saying they don’t have it.

Statelessness​

Next, the client and server communication needs to be stateless: the server and client don’t need to know the state of the other. The server doesn’t store state from the client and therefore the client can’t depend on it. Therefore the client needs to send everything the server would need to process a request every time and any storing needs to happen client-side.

To continue with the analogy, when you make your call, you don’t need to know what the restaurant has in stock, and they don’t need to know what you want until you order. Additionally, you’re responsible for keeping track of what you like to order, not the restaurant.

Cache​

Cache constraints require that the response be labeled as cacheable or non-cacheable. If it’s cacheable, then the client can choose to use this data for future requests that are equivalent. For instance, if the data is valid for a set time, the cached data will be used instead of making a request to the server.

For your takeout call, the restaurant may tell you that a specific item is not available until a certain date. You can then remember to not order it again if you make another request before that date.

Uniform Interface​

As mentioned, the client and server are independent of each other, meaning they evolve and change independently. For this reason, it’s imperative that the interface between the client and server expect some commonality in their communication. This constraint can actually be broken down even further:

  1. Resource-Based: This is two-fold: First, individual resources should be identifiable in the request. Often this is done in the path of the URI of the request. For example, /todos/2 would directly address the todo item with the ID of 2. Second, the presentation of the resource does not necessarily need to match the internal representation by the server. The todo item may be returned as JSON, but more realistically the server is storing this in a database in another format.

  2. Manipulate Resources Through Representations: When the client receives a resource, the representation of that resource contains enough information to update or delete it. This could be seen as the flip-side of the “stateless” constraint. Using the same example of a todo list, if a client requests all items in a todo list, each of those items would likely include an ID so that it could be individually addressed.

  3. Self-Descriptive Messages: Each message or resource should include enough information so that the client knows how to process that message. For example, if a client has requested a resource that’s returned as JSON, the response should also include a Content-Type header with the value application/json.

  4. Hypermedia as the Engine of Application Sate: AKA “HATEOAS”. This could be a whole conversation on it’s own, and it’s encouraged to read on this topic as well, but in short each response should include related links that the client can use to discover other actions and resources. Continuing the ToDo example, requesting an individual todo item may include links to the list that it is a part of.

Layered System​

A client cannot ordinarily tell whether it is connected directly to the end server, or to an intermediary along the way.

If a proxy or load balancer is placed between the client and server, it won't affect their communications and there won't be a need to update the client or server code. Intermediary servers can improve system scalability by enabling load balancing and by providing shared caches.

Also, security can be added as a layer on top of the web services, and then clearly separate business logic from security logic.Addin g security as a separate layer enforces security policies. Finally, it also means that a server can call multiple other servers to generate a response to the client.

Code On Demand​

Servers can temporarily extend or customize the functionality of a client by transferring executable code: for example, compiled components such as Java applets, or client-side scripts such as JavaScript.

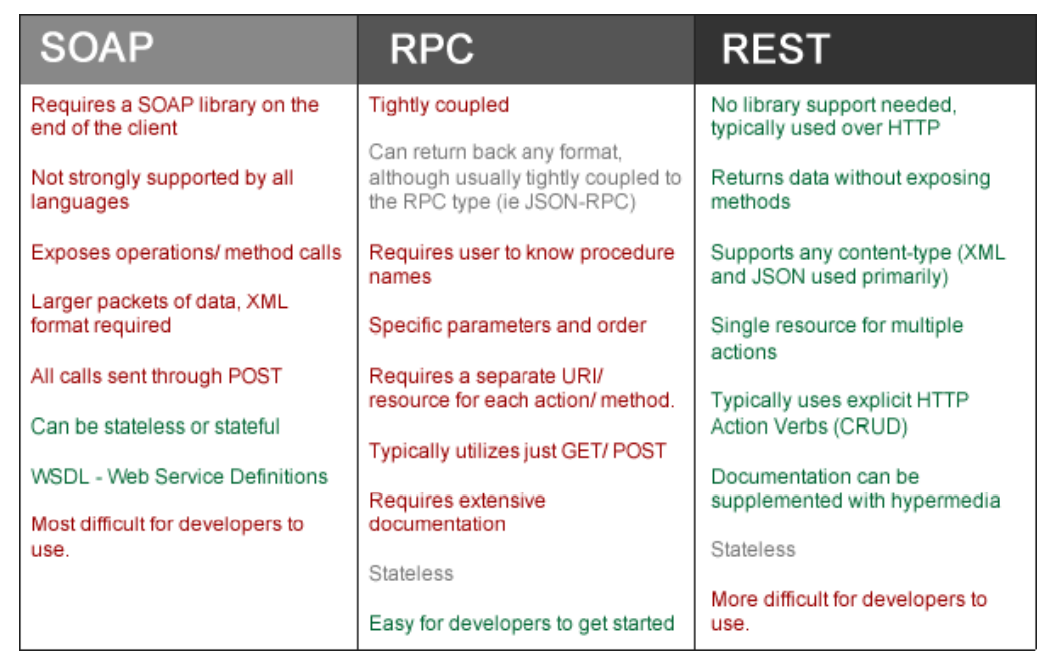

Difference in Web services​

SOAP Vs RPC Vs REST

Please click the below link for more details.
